Hud-Son Log loading trailers
- Details
- Category: Manufacturers
- Published on Tuesday, 22 November 2011 02:21
- Written by Super User
- Hits: 261
|
|
|
|
|
 |
HUD-SON log loaders are equipped with sectional valve with specially designed spools to eliminate back-kicks and provide smooth and progressive control in all positions. The valve support is adjustable in height, can be tilted and rotated to the most comfortable position for the operator. |
|
 |

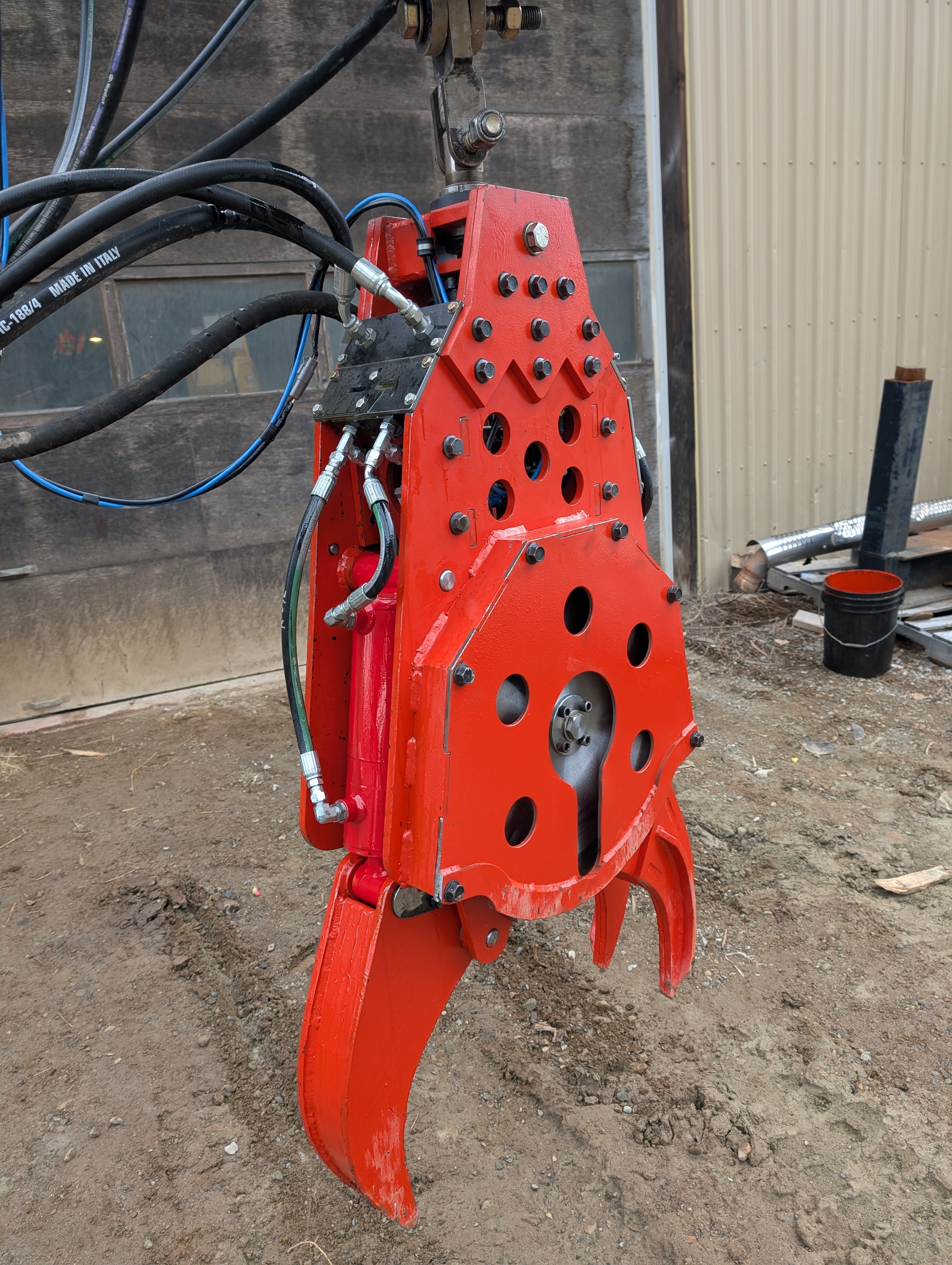

The Hud-Son log loaders rugged grapples are well designed down to the smallest details. Well balanced in all positions, grapples provide a wide opening and a full 360 degree continuous rotation. Jaws are made of CHT100 steel for increased wear resistance. All pivot points on the grapple are easy to access and fully greasable. |
|
| The pivots between the masts as well as the rod and base mounts of the cylinders are all greasable to ensure durability. The pivots between the masts come with cellular structure bushings that provide constant lubrication. The rod and base mounts of the cylinders are mounted on heavy-duty bushings. |
|
| Every hose installed on a Hud-Son log loader is of high quality allowing for great flexibility while being very durable. The hose fittings are protected either by their location or by installing spacers to prevent severe bending. Hydraulic hoses are multi segmented to allow for easy and inexpensive maintenance and replacement when needed. |
|
| Rotation of mast by rack and pinion mechanism mounted in heavy duty oil filled ductile iron casing. Hardened steel rack and pinion powered by two 3-1/2”hydraulic cylinders. |
 |
